Maven 1000W 1500W Portable Metal Handheld Fiber Laser Welding Machine Handheld Fiber Laser Machine

Handheld Laser Welding Machine

Interview share

Attachment

Product Detail

Protective lens alarm

If the protective lens is damaged while you are operating the machine, our system will recognize it and send an alert to prevent damage to your laser

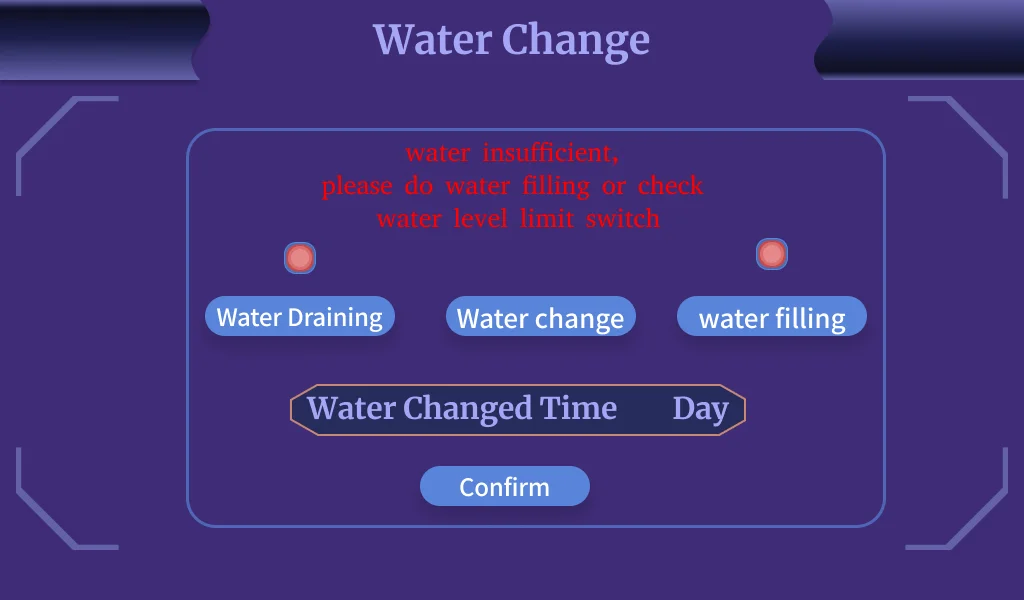

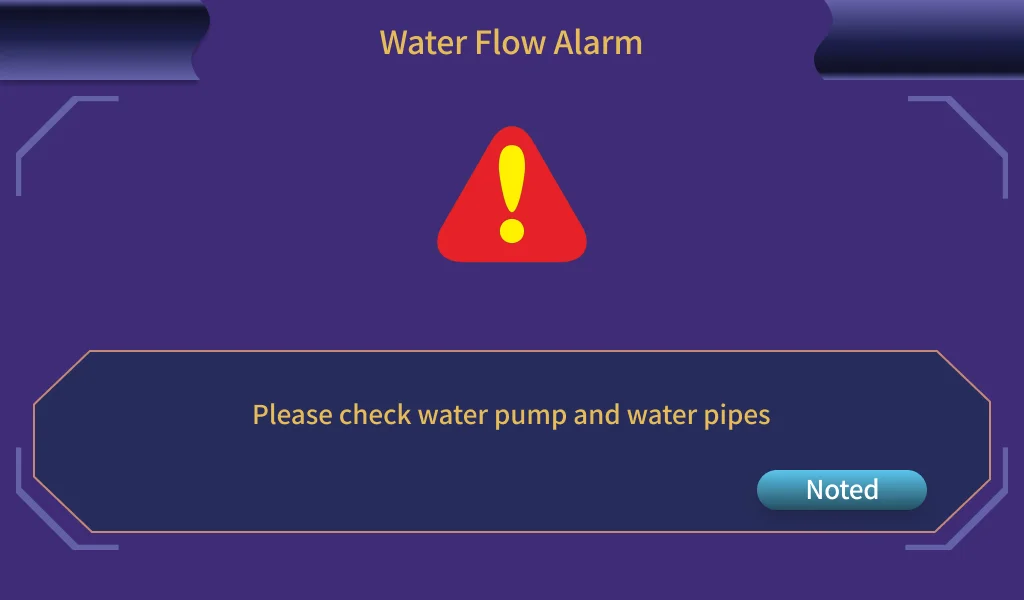

Water Flow Alarm

We use water cooling system, when the machine is out of water, the system will sound an alarm and you don't need to open the cabinet, our system can add water with one click, if you connect the water pipe

Powerful IO system

When your machine which item has a problem, the system will tell you in which link there is a problem, which will greatly facilitate the after-sales repair service

More details of the update system

Specification

Model No.	MLA-W-H1000G
Product Name	Hand-held fiber laser welding machine
Wavelength	1080+/-10 nm
Laser power	1500W,1000W
Power adjustment	10~100%
Laser spot diameter	QCS 3±0.5/RFL-QCS 5.5±0.5
Fiber length	Standard 15m or specify
Working methods	CW/ Pulse mode
Speed range	0~120mm
Weld thickness	0.5-6mm
Power supply	220V/50Hz/30A
Chilling methods	Water chilled inbuilt
Machine size	456887718 mm
Net weight	180 KG
